Smart Meter (Steiermark - Graz)
Intro

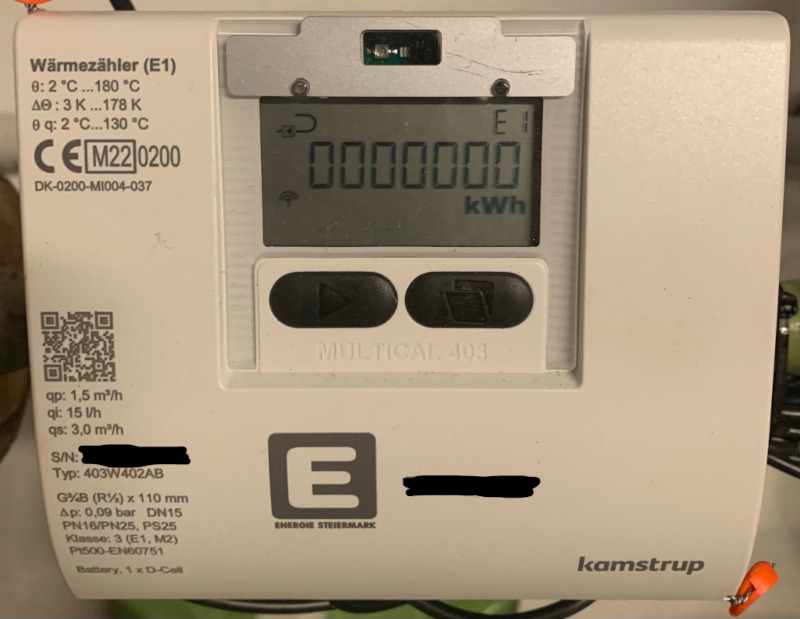

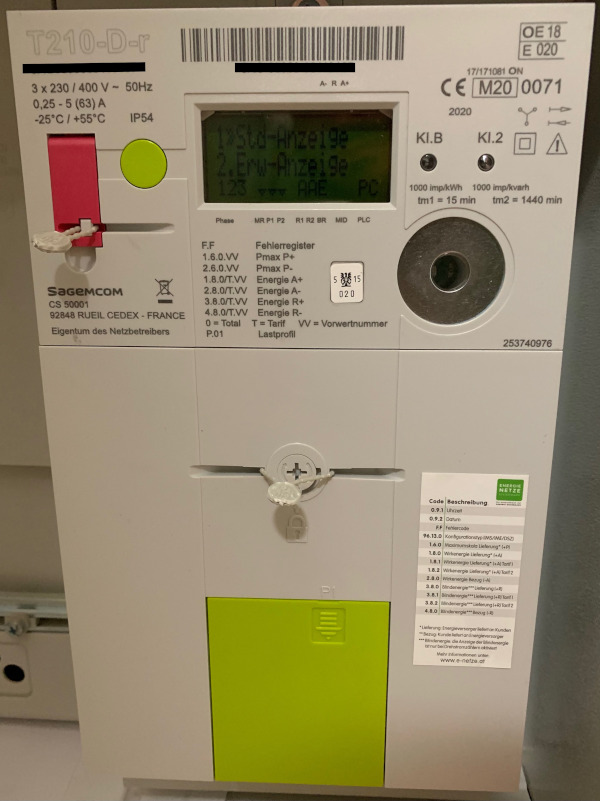

During this years summer vacation I invested some time into reading out energy consumption from my electric smart meter (Sagemcom T210-D-r) and the heat smart meter (Kamstrup Multical 403).
I assume that this might be of interest for other people which
- do get their electicity from Energie Steiermark and do have a Sagemcom T210-D-r smart meter installed
- do have a central heat supply from Energie Steiermark and do have a Kamstrup Multical 403 smart meter installed
Hardware Setup
I am reading both smart meters via a Raspberry Pi device using the interfaces as described on the github repo .
Software
The python implmentation for reading both devices and publishing the information on a local MQTT service can be found in the according github repo .
Usage
In my case the posted measurements (following the Homie 4.0.0 Standard ) are picked up as channels on my Openhab service. I am using InfluxDB as persistence service and the incomming state changes are persisted. Finally the data is visualized in a Grafana dashboard .

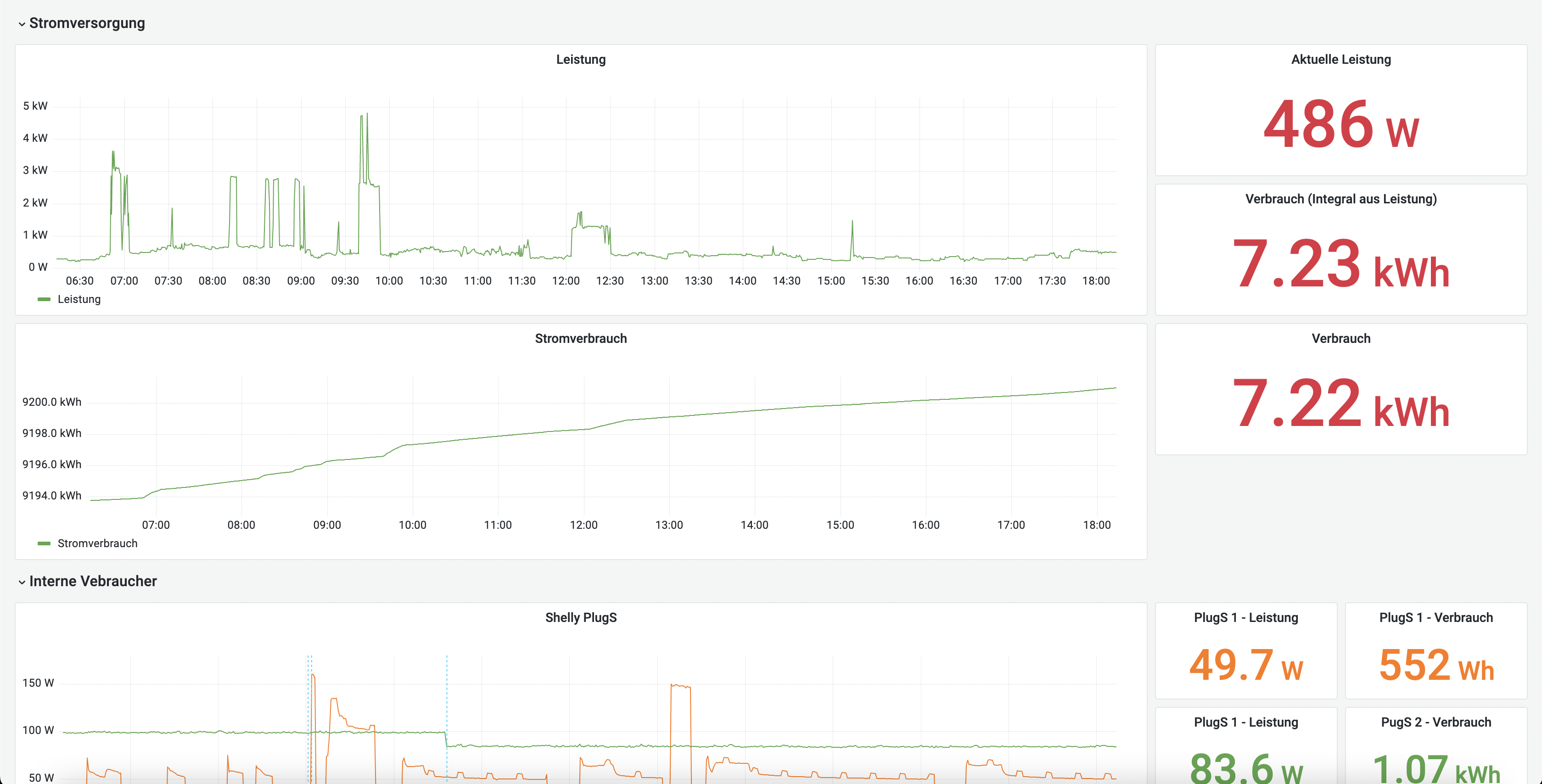

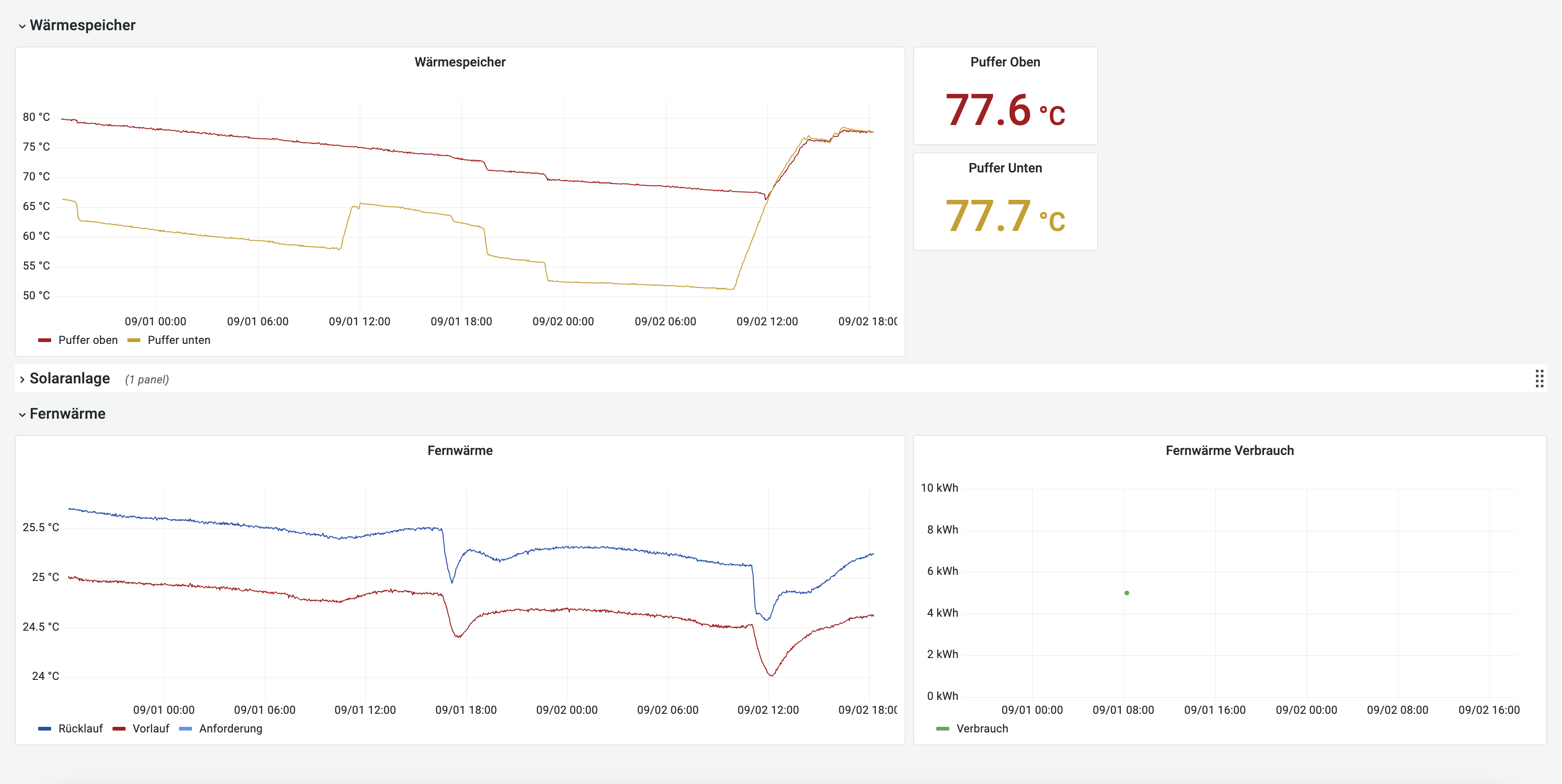

Below you can find example screenshots:
